Pixhawk 2.4.8 Flight Control, Open Source PX4 autopilot

Pixhawk 2.4.8 Flight Control, Open Source PX4 autopilot

$185.99
$185.99
Sale Sold out
Shipping calculated at checkout.
样式
View full details
  • Stable Autopilot - Pixhawk2.4.8 can be used as a master controller for fixed-wing, multi-rotor, helicopter, boat, car, etc. By connecting motor, servo, camera, sensor, microcomputer, it enables autopilot or remote driving.
  • Secondary Development - It is an independent, open source, efficient flight controller, supports rich function modules, and capable hobbyists can carry out secondary development. It is the first choice for autopilot starter, researcher and developer.
  • High-end Configuration - New layout and technical upgrade base on 3DR PIX. Advanced 32F427 ARM Cortex M4 Core high-performance processor, 32-bit fail-safe co-processor, MPU 6000 3-axis accelerometer.
  • Newbie Friendly - We have prepared a quick start guide for new players that will assist you with the basic assembly and calibration of a DIY F450 drone. Please contact us if you need it.
  • Quality Assurance - Pass the quality inspection before shipment, free repair or replacement within 3 months if quality problem occurs.

Features:

- Advanced 32-bit M4 Processor running NuttX RTOS

- 14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)

- Abundant connectivity options for additional peripherals (UART, I2C, CAN)

- Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply

- Backup system integrates mixing, providing consistent autopilot and manual override mixing modes

- Redundant power supply inputs and automatic failover

- External safety button for easy motor activation

- Multicolor LED indicator

- High-power, multi-tone piezo audio indicator

- MicroSD card for long-time high-rate logging

Pixhawk 2.4.8 Specifications

Microprocessor:

- 32-bit STM32F427 Cortex M4 core with FPU

- 168 MHz / 256 KB RAM / 2 MB Flash

- 32-bit STM32F103 failsafe co-processor

Sensors:

- L3GD20 3-axis 16-bit gyroscope

- LSM303D 3-axis 14-bit accelerometer / magnetometer

- MPU 6000 3-axis accelerometer / gyroscope

- 5611 barometer

Interfaces:

- 5x UART (serial ports), one high-power capable, 2x with HW flow control

- 2x CAN

- S.BUS input and output

- PPM sum signal

- RSSI (PWM or voltage) input

- I2C

- SPI

- 3.3 and 6.6V ADC inputs

- External micro-USB port

Power System:

- Ideal diode controller with automatic failover

- Servo rail high-power (7 V) and high-current ready

- All peripheral outputs over-current protected, all inputs ESD protected

Weight and Dimensions:

Weight: 38g (1.31oz)

Width: 50mm (1.96")

Thickness: 15.5mm (0.61")

Length: 81.5mm (3.21")

GPS Specifications

Velocity Precision: 0.1 m/s

Max Height: 50,000 m

Max Speed: 515 m/s

Max Acceleration: 4 G

Update Rate: 10 Hz

Time to First Fix: Cold start: 26s, Hot start: 1s

Power supply: voltage DC 5V±5%

Diameter: 54 mm / 2.126 inch

Thickness: 15 mm / 0.59 inch

  • Excellent master controller for fixed-wing, multi-rotor, helicopter, boat, car, etc. Ideal for beginner to learn the basic calibration.

  • By connecting the Raspberry Pi and other components, experts can use it for in-depth learning and secondary development.

  • Mission Planner is required for calibration. Both Mission Planner & QGroundControl can be used to plan routes.

  • Use 2.5dbl ceramic antenna and the positioning accuracy get to 50cm.

  • Quick first fix, cold start 26s, Hot start 1s.

  • Up to 18 satellites can be searched in open areas.

Pixhawk kit includes:

- Pixhawk 2.4.8 board

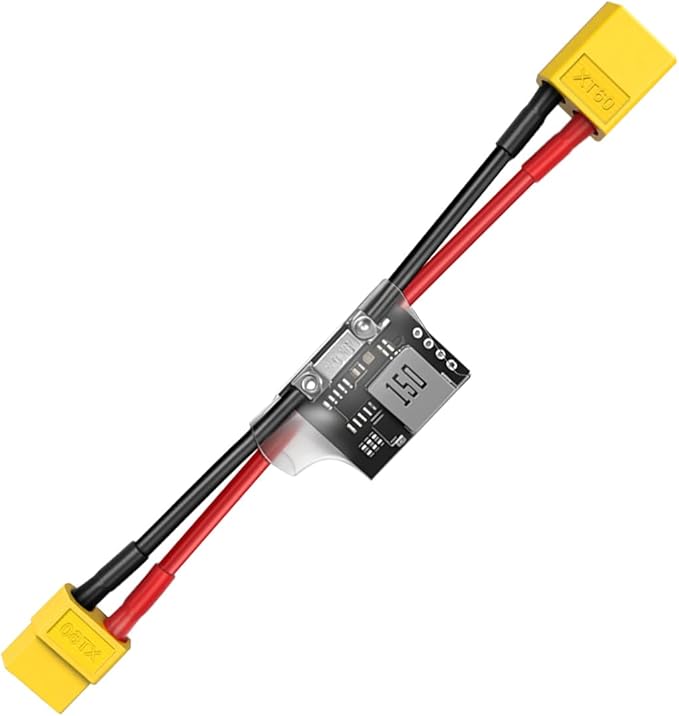

- Power Module

- Safety Switch

- Buzzer

- 4G SD Card

- Shock Absorber

- Foam adhesive

- Wires (Micro USB data cable, 3-pin to 3-pin, 4-pin to 4-pin, 6-pin to 6-pin)

GPS kit includes:

- M8N GPS module

- Bracket

- Foam adhesive
